0 前言

基于 isoft-serveros-v4.2

本文参考以下链接:

1 前期准备

1.1 安装包准备

Ambari-2.7.5 HDP-3.1.5 libtirpc-devel:

链接:https://pan.baidu.com/s/1eteZ2jGkSq4Pz5YFfHyJgQ

提取码:6hq3

1.2 服务器配置

主机名 cpu 内存 硬盘 系统版本 ip 地址
node001 4c 10g 50g isoft-serveros-4.2 192.168.150.106
node002 2c 4g 20g isoft-serveros-4.2 192.168.150.107

1.3 修改系统版本文件 (allnode)

sed -i 's/4/7/g' /etc/redhat-release
sed -i 's/4/7/g' /etc/os-release

1.4 配置主机名 (allnode)

2 台服务器的 hosts 都需要做如下修改

  • 修改主机名
hostnamectl set-hostname node001
bash
  • 修改 hosts 文件
vim /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.150.106 node001
192.168.150.107 node002

1.5 关闭防火墙及 selinux (allnode)

2 台服务器上分别执行以下操作,关闭防火墙并配置开机不自动启动

systemctl stop firewalld
systemctl disable firewalld
setenforce 0

为了重启后依然关闭,配置如下文件

vim /etc/sysconfig/selinux

# 修改
SELINUX=disabled

1.6 配置 ssh 互信 (allnode)

方法一

在每台服务器上执行如下操作,一直回车即可

ssh-keygen -t rsa
ssh-copy-id -i /root/.ssh/id_rsa.pub node001
ssh-copy-id -i /root/.ssh/id_rsa.pub node002

方法二

在每台服务器上执行如下操作,一直回车即可

ssh-keygen -t rsa

在服务器 1 上将公钥(名为 id_rsa.pub 文件)追加到认证文件(名为 authorized_keys 文件)中:

cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys

去其他服务器节点将 ~/.ssh/id_rsa.pub 中的内容拷贝到服务器 1 的 ~/.ssh/authorized_keys 中,查看文件中的内容

cat ~/.ssh/authorized_keys
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC/eA09X4s5RIYvuYNxVvtOo6unY1mgipsFyoz/hy/Gwk0onfZvBi/Sl3TVRZO5aqcHccAGlLF7OPTKH1qUuKVtnUOQik0TouL5VKsOBDMHHRT9D5UwqaIE8tYDC8V6uwieFgscZcBjhrsJ/Iramo9ce7N9RTO3otRMRQxOs+Wd1F/ZOmpRtMGU2N4RH4i2quRU6m2lt/eJKpNupSHKoztTQRsEanilHVASnikAXH8JpG70iO7RXR/hLz+/Of3ISUrOMSO4/ZIIu4xnYN3jvsXOdK/qIhP/PI2s+uF22IvVE6xZYVadQFa4zAuhQmCBWkE7vMyI1UJkxP7OQYj72LUH root@node001
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQCnz8wHoytR2Xlnl04rQq4I2vgUVWbkKjv30pj+Toz4719ah4cY9pvZj0JsfhVzaaCsR14BLFVLkqKUhCWK3K6muT4iHb+N0WirpbwfJkztmQeco7Ha9xrPQ8v/I4xZujFoMVA0tkb/32zRTxOkPv9AUgB8V6Lin6LnB/AcnhnmoIs5PdbAdh/kBGpQGKIZkbyCUOYz9/PZuGJoJBblqfWiqzxYYLN9+cYMkmPnB1HdDewAepIsIC18U3ujE+1Su2UlmISPvvr1zG4XR4ZZoKQsOOJq3XRMGVkDvmFhl03JHZpd6BW0796CeYVZ41UomWXTOduQql+tYWUbegzGLmRZ root@node002
ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC8AFoGJHp2M45xLYNzXUHLWzRwHsgRPHjeErStq0tEy9bQv4OkN41j0FrxVAYJiGHdHGturriVgUEtL59RjcrJH6bAvhP54nM5YiQlNnWnSUR27Zuaodz4nhYUFq/Co5eDN6lTfL8pgYiEdpBOvE5t1w3bisdblP7YGQ2lF1zzCEGfQ79QbntEbyGNoR9sGHm11x9fOH+fape8TjQJrEAO4d1tAhMqVygQKwqwAPKeqhEum6BaLli83TsXzd7gyz9H7AAc1m04NaLB26xfynW6MVuk1j94awXKlGXjrbNTC/Kg6M8bd5PT/k3DOkx4b+nEs8xZ5x1j4D2OaO1X6rZx root@node003

设置认证文件的权限:

chmod 600 ~/.ssh/authorized_keys

~/.ssh/authorized_keys 同步到其他节点

scp ~/.ssh/authorized_keys node002:~/.ssh/authorized_keys

注意:这里第一次使用同步还需要密码,之后就不需要了

验证免密是否配置成功

ssh 到不同服务器

ssh node002

1.7 配置 ntp 时钟同步

选择一台服务器作为 NTP Server,这里选择 node001

将如下配置 vim /etc/ntp.conf

# Use public servers from the pool.ntp.org project.
# Please consider joining the pool (http://www.pool.ntp.org/join.html).
server 0.centos.pool.ntp.org iburst
server 1.centos.pool.ntp.org iburst
server 2.centos.pool.ntp.org iburst
server 3.centos.pool.ntp.org iburst

修改为

# Use public servers from the pool.ntp.org project.
# Please consider joining the pool (http://www.pool.ntp.org/join.html).
#server 0.centos.pool.ntp.org iburst
#server 1.centos.pool.ntp.org iburst
#server 2.centos.pool.ntp.org iburst
#server 3.centos.pool.ntp.org iburst
server 127.127.1.0
fudge 127.127.1.0 stratum 10

node002 节点做如下配置

vim /etc/ntp.conf

# Use public servers from the pool.ntp.org project.
# Please consider joining the pool (http://www.pool.ntp.org/join.html).
server 0.centos.pool.ntp.org iburst
server 1.centos.pool.ntp.org iburst
server 2.centos.pool.ntp.org iburst
server 3.centos.pool.ntp.org iburst

修改为

# Use public servers from the pool.ntp.org project.
# Please consider joining the pool (http://www.pool.ntp.org/join.html).
#server 0.centos.pool.ntp.org iburst
#server 1.centos.pool.ntp.org iburst
#server 2.centos.pool.ntp.org iburst
#server 3.centos.pool.ntp.org iburst
server 192.168.150.106

在每台服务器上启动 ntpd 服务,并配置服务开机自启动

systemctl restart ntpd
systemctl enable ntpd

1.8 设置 swap(allnode)

echo vm.swappiness = 1 >> /etc/sysctl.conf
sysctl vm.swappiness=1
sysctl -p

1.9 关闭透明大页面 (allnode)

由于透明超大页面已知会导致意外的节点重新启动并导致 RAC 出现性能问题,因此 Oracle 强烈建议禁用

echo never > /sys/kernel/mm/transparent_hugepage/defrag
echo never > /sys/kernel/mm/transparent_hugepage/enabled

1.10 安装 http 服务 (node001)

安装 apache 的 httpd 服务主要用于搭建 OS. Ambari 和 hdp 的 yum 源。在集群服务器中选择一台服务器来安装 httpd 服务,命令如下:

yum -y install httpd
systemctl start httpd
systemctl enable httpd.service

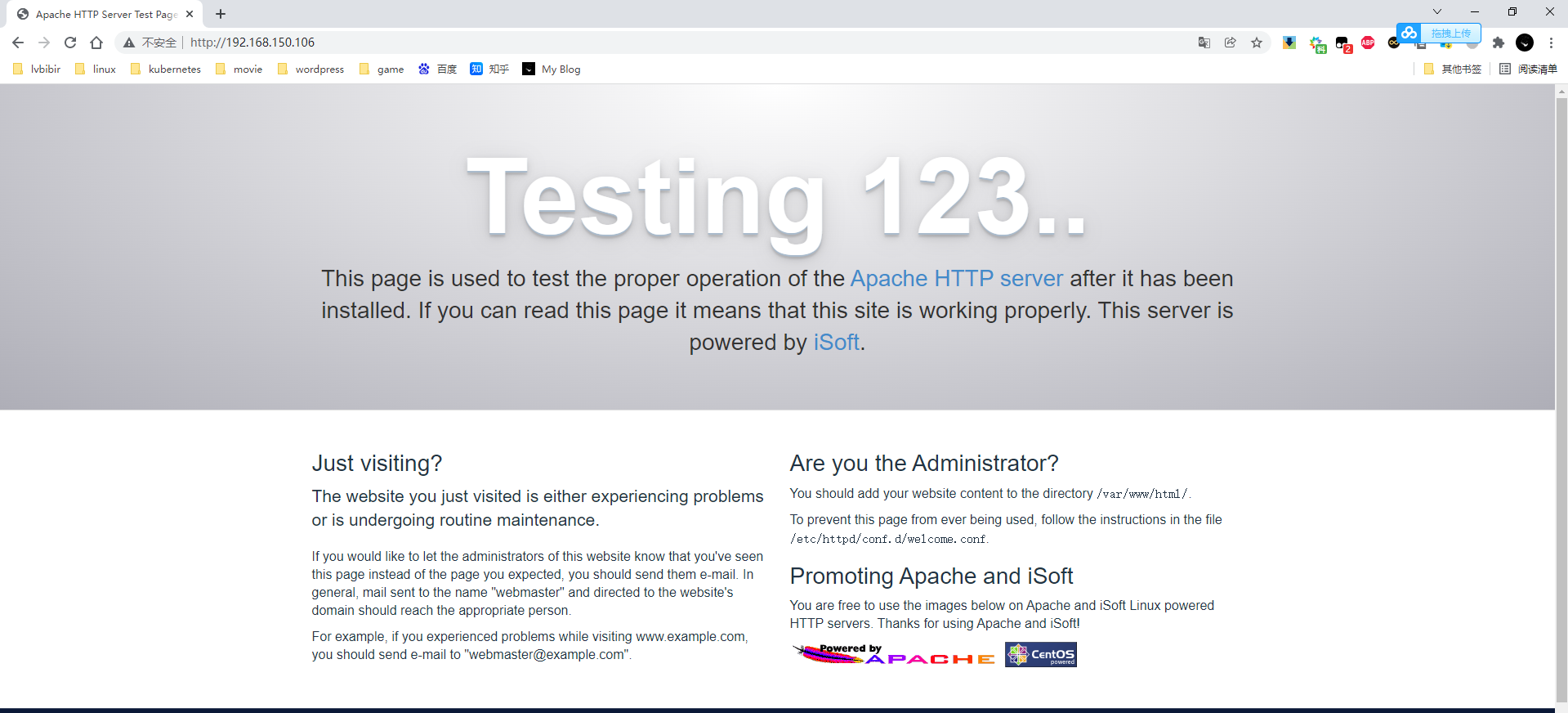

验证,在浏览器输入http://192.168.150.106看到如下截图则说明启动成功。

image-20211123141149628

1.11 安装 Java(allnode)

下载地址:https://www.oracle.com/java/technologies/javase/javase-jdk8-downloads.html

tar -zxvf jdk-8u271-linux-x64.tar.gz
mkdir /usr/local/java
mv jdk1.8.0_271/* /usr/local/java

配置环境变量

vim /root/.bashrc

添加如下配置

export JAVA_HOME=/usr/local/java
export PATH=$PATH:$JAVA_HOME/bin
export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export JRE_HOME=$JAVA_HOME/jre

激活配置

source /root/.bashrc
java -version

1.12 安装 maven3.6(node001)

下载解压

tar -zxvf apache-maven-3.6.3-bin.tar.gz
mkdir -p /opt/src/maven
mv apache-maven-3.6.3/* /opt/src/maven

配置 maven 环境变量

vim /root/.bashrc
# set maven home
export PATH=$PATH:/opt/src/maven/bin

激活

source /root/.bashrc

2 安装 Ambari & HDP

2.1 配置本地源

解压

tar -zxvf  ambari-2.7.5.0-centos7.tar.gz -C /var/www/html/
tar -zxvf  HDP-3.1.5.0-centos7-rpm.tar.gz -C /var/www/html/
tar -zxvf  HDP-GPL-3.1.5.0-centos7-gpl.tar.gz -C /var/www/html/
tar -zxvf  HDP-UTILS-1.1.0.22-centos7.tar.gz -C /var/www/html/

ll /var/www/html/

总用量 0
drwxr-xr-x. 3 root root  21 11月 23 22:31 ambari
drwxr-xr-x. 3 1001 users 21 12月 18 2019 HDP
drwxr-xr-x. 3 1001 users 21 12月 18 2019 HDP-GPL
drwxr-xr-x. 3 1001 users 21 8月  13 2018 HDP-UTILS

设置设置用户组和授权

chown -R root:root /var/www/html/HDP
chown -R root:root /var/www/html/HDP-GPL
chown -R root:root /var/www/html/HDP-UTILS
chmod -R 755 /var/www/html/HDP
chmod -R 755 /var/www/html/HDP-GPL
chmod -R 755 /var/www/html/HDP-UTILS

创建 libtirpc-devel 本地源

mkdir /var/www/html/libtirpc
mv /root/libtirpc-* /var/www/html/libtirpc/
cd /var/www/html/libtirpc
createrepo .

制作本地源

配置 ambari.repo

vim /etc/yum.repos.d/ambari.repo
[Ambari-2.7.5.0]
name=Ambari-2.7.5.0
baseurl=http://192.168.150.106/ambari/centos7/2.7.5.0-72/
gpgcheck=0
enabled=1
priority=1

配置 HDP 和 HDP-TILS

vim /etc/yum.repos.d/HDP.repo
[HDP-3.1.5.0]
name=HDP Version - HDP-3.1.5.0
baseurl=http://192.168.150.106/HDP/centos7/3.1.5.0-152/
gpgcheck=0
enabled=1
priority=1

[HDP-UTILS-1.1.0.22]
name=HDP-UTILS Version - HDP-UTILS-1.1.0.22
baseurl=http://192.168.150.106/HDP-UTILS/centos7/1.1.0.22/
gpgcheck=0
enabled=1
priority=1

[HDP-GPL-3.1.5.0]
name=HDP-GPL Version - HDP-GPL-3.1.5.0
baseurl=http://192.168.150.106/HDP-GPL/centos7/3.1.5.0-152
gpgcheck=0
enabled=1
priority=1

配置 libtirpc.repo

vim /etc/yum.repos.d/libtirpc.repo
[libtirpc_repo]
name=libtirpc-0.2.4-0.16
baseurl=http://192.168.150.106/libtirpc/
gpgcheck=0
enabled=1
priority=1

拷贝到其他节点

scp /etc/yum.repos.d/* node002:/etc/yum.repos.d/

查看源

yum clean all
yum repolist

2.2 安装 mariadb(node001)

安装 MariaDB 服务器

yum install mariadb-server -y

启动并设置开机启动

systemctl enable mariadb
systemctl start mariadb

初始化

/usr/bin/mysql_secure_installation

[...]
Enter current password for root (enter for none):
OK, successfully used password, moving on...
[...]
Set root password? [Y/n] Y
New password:123456
Re-enter new password:123456
[...]
Remove anonymous users? [Y/n] Y
[...]
Disallow root login remotely? [Y/n] N
[...]
Remove test database and access to it [Y/n] Y
[...]
Reload privilege tables now? [Y/n] Y
[...]
All done! If you've completed all of the above steps, your MariaDB 18 installation should now be secure.
Thanks for using MariaDB!

为 MariaDB 安装 MySQL JDBC 驱动程序

tar zxf mysql-connector-java-5.1.40.tar.gz
mv mysql-connector-java-5.1.40/mysql-connector-java-5.1.40-bin.jar /usr/share/java/mysql-connector-java.jar

创建需要的数据库

如果需要 ranger,编辑以下⽂件: vim /etc/my.cnf 并添加以下⾏:

log_bin_trust_function_creators = 1

重启数据库并登录

systemctl restart mariadb
mysql -u root -p123456

2.3 安装和配置 ambari-server (node001)

安装 ambari-server

yum -y install ambari-server

复制 mysql jdbc 驱动到 /var/lib/ambari-server/resources/

cp /usr/share/java/mysql-connector-java.jar /var/lib/ambari-server/resources/

配置 /etc/ambari-server/conf/ambari.properties,添加如下行

vim /etc/ambari-server/conf/ambari.properties
server.jdbc.driver.path=/usr/share/java/mysql-connector-java.jar

执行

ambari-server setup --jdbc-db=mysql --jdbc-driver=/usr/share/java/mysql-connector-java.jar

初始化 ambari-server

ambari-server setup

1) 提示是否自定义设置。输入:y
Customize user account for ambari-server daemon [y/n] (n)? y
(2)ambari-server 账号。
Enter user account for ambari-server daemon (root):
如果直接回车就是默认选择root用户
如果输入已经创建的用户就会显示:
Enter user account for ambari-server daemon (root):ambari
Adjusting ambari-server permissions and ownership...
(3)设置JDK。输入:2
Checking JDK...
Do you want to change Oracle JDK [y/n] (n)? y
[1] Oracle JDK 1.8 + Java Cryptography Extension (JCE) Policy Files 8
[2] Custom JDK
==============================================================================
Enter choice (1): 2
如果上面选择3自定义JDK,则需要设置JAVA_HOME。输入:/usr/local/java
WARNING: JDK must be installed on all hosts and JAVA_HOME must be valid on all hosts.
WARNING: JCE Policy files are required for configuring Kerberos security. If you plan to use Kerberos,please make sure JCE Unlimited Strength Jurisdiction Policy Files are valid on all hosts.
Path to JAVA_HOME: /usr/local/java
Validating JDK on Ambari Server...done.
Completing setup...
(4)安装GPL,选择:y
Checking GPL software agreement...
GPL License for LZO: https://www.gnu.org/licenses/old-licenses/gpl-2.0.en.html
Enable Ambari Server to download and install GPL Licensed LZO packages [y/n] (n)? y
(5)数据库配置。选择:y
Configuring database...
Enter advanced database configuration [y/n] (n)? y
(6)选择数据库类型。输入:3
Configuring database...
==============================================================================
Choose one of the following options:
[1] - PostgreSQL (Embedded)
[2] - Oracle
[3] - MySQL/ MariaDB
[4] - PostgreSQL
[5] - Microsoft SQL Server (Tech Preview)
[6] - SQL Anywhere
==============================================================================
Enter choice (3): 3
(7)设置数据库的具体配置信息,根据实际情况输入,如果和括号内相同,则可以直接回车。如果想重命名,就输入。
Hostname (localhost):node001
Port (3306): 3306
Database name (ambari): ambari
Username (ambari): ambari
Enter Database Password (bigdata):ambari123
Re-Enter password: ambari123
(8)将Ambari数据库脚本导入到数据库
WARNING: Before starting Ambari Server, you must run the following DDL against the database to create the schema: /var/lib/ambari-server/resources/Ambari-DDL-MySQL-CREATE.sql 这个sql后面会用到,导入数据库
Proceed with configuring remote database connection properties [y/n] (y)? y

登录 mariadb 创建 ambari 安装所需要的库

设置的账号后面配置 ambari-server 的时候会用到

mysql -uroot -p123456

CREATE DATABASE ambari;
use ambari;
CREATE USER 'ambari'@'%' IDENTIFIED BY 'ambari123';
GRANT ALL PRIVILEGES ON *.* TO 'ambari'@'%';
CREATE USER 'ambari'@'localhost' IDENTIFIED BY 'ambari123';
GRANT ALL PRIVILEGES ON *.* TO 'ambari'@'localhost';
CREATE USER 'ambari'@'node001' IDENTIFIED BY 'ambari123';
GRANT ALL PRIVILEGES ON *.* TO 'ambari'@'node001';

source /var/lib/ambari-server/resources/Ambari-DDL-MySQL-CREATE.sql
show tables;
use mysql;
select host,user from user where user='ambari';
CREATE DATABASE hive;
use hive;
CREATE USER 'hive'@'%' IDENTIFIED BY 'hive';
GRANT ALL PRIVILEGES ON *.* TO 'hive'@'%';
CREATE USER 'hive'@'localhost' IDENTIFIED BY 'hive';
GRANT ALL PRIVILEGES ON *.* TO 'hive'@'localhost';
CREATE USER 'hive'@'node001' IDENTIFIED BY 'hive';
GRANT ALL PRIVILEGES ON *.* TO 'hive'@'node001';

CREATE DATABASE oozie;
use oozie;
CREATE USER 'oozie'@'%' IDENTIFIED BY 'oozie';
GRANT ALL PRIVILEGES ON *.* TO 'oozie'@'%';
CREATE USER 'oozie'@'localhost' IDENTIFIED BY 'oozie';
GRANT ALL PRIVILEGES ON *.* TO 'oozie'@'localhost';
CREATE USER 'oozie'@'node001' IDENTIFIED BY 'oozie';
GRANT ALL PRIVILEGES ON *.* TO 'oozie'@'node001';
FLUSH PRIVILEGES;

2.4 安装 ambari-agent(allnode)

pssh -h /node.list -i 'yum -y install ambari-agent'
pssh -h /node.list -i 'systemctl start ambari-agent'

2.5 安装 libtirpc-devel(allnode)

pssh -h /node.list -i 'yum -y install libtirpc-devel'

2.6 启动 ambari 服务

ambari-server start

3 部署集群

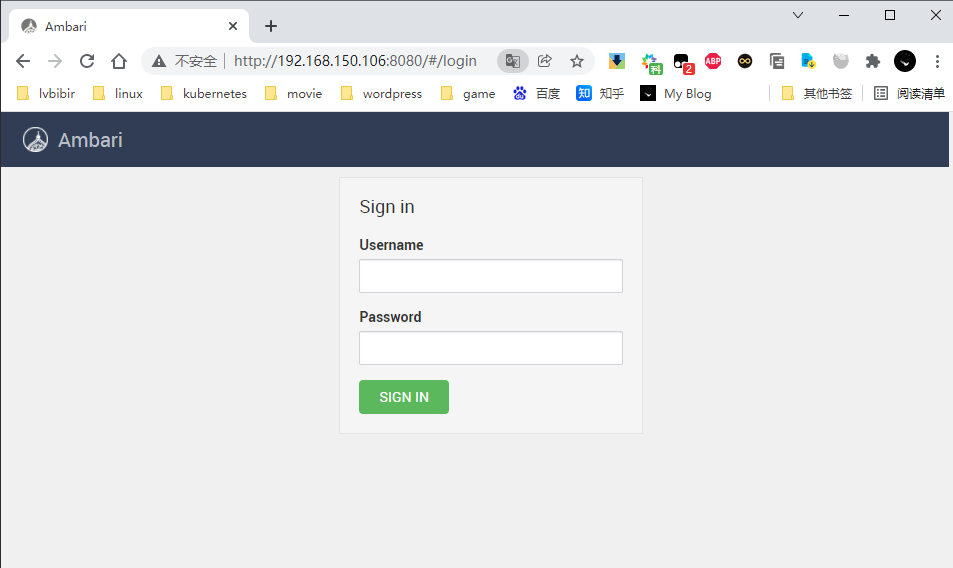

3.1 登录界面

http://192.168.150.106:8080

默认管理员账户登录, 账户:admin 密码:admin

image-20211123145726406

3.2 选择版本,配置 yum 源

1)选择 Launch Install Wizard

2)配置集群名称

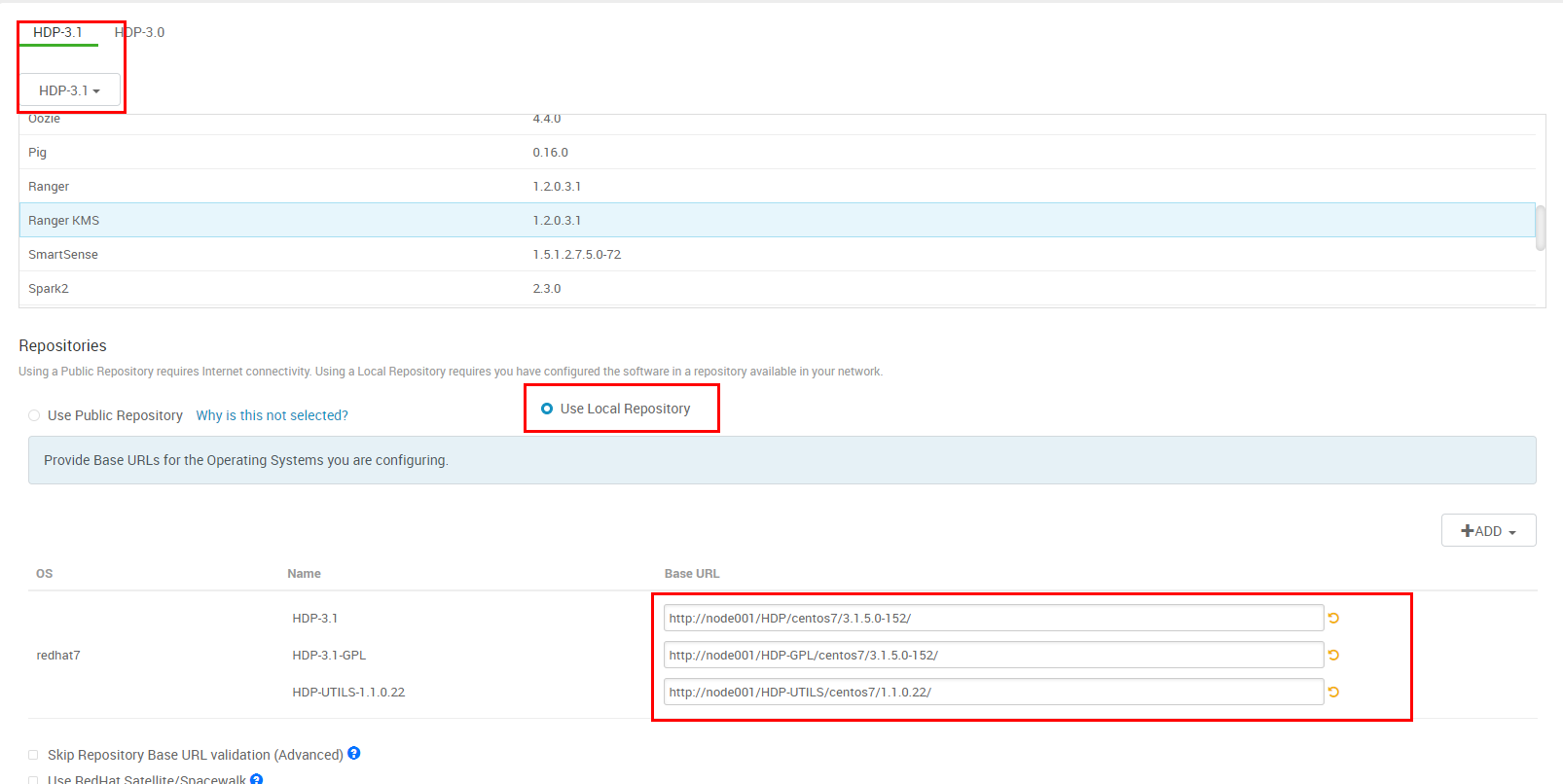

3)选择版本并修改本地源地址

选 HDP-3.1(Default Version Definition);

选 Use Local Repository;

选 redhat7:

HDP-3.1:http://node001/HDP/centos7/3.1.5.0-152/

HDP-3.1-GPL: http://node001/HDP-GPL/centos7/3.1.5.0-152/

HDP-UTILS-1.1.0.22: http://node001/HDP-UTILS/centos7/1.1.0.22/

image-20211123150120718

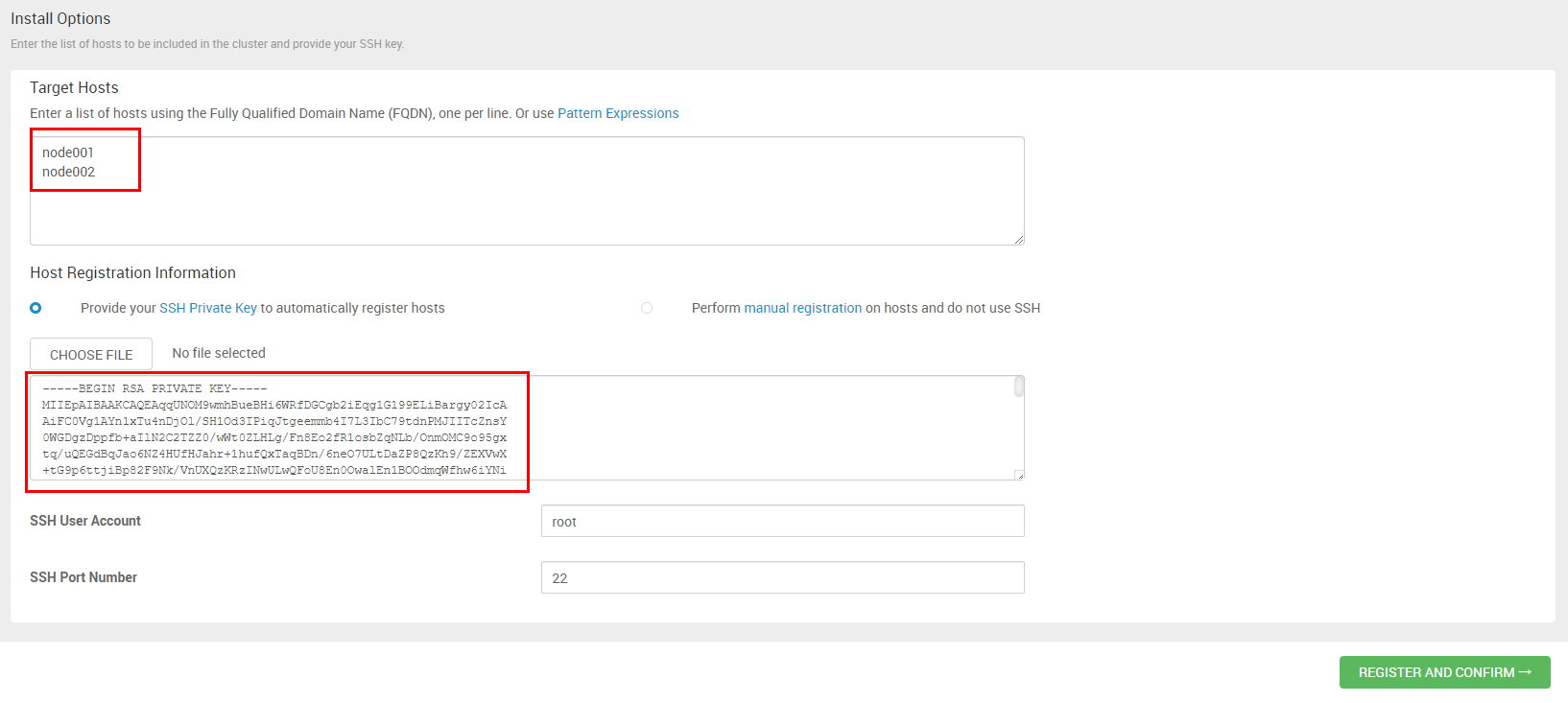

3.3 配置节点和密钥

下载主节点的 /root/.ssh/id_rsa,并上传!点击下一步,进入确认主机界面

也可直接 cat /root/.ssh/id_rsa 粘贴即可

image-20211123150255012

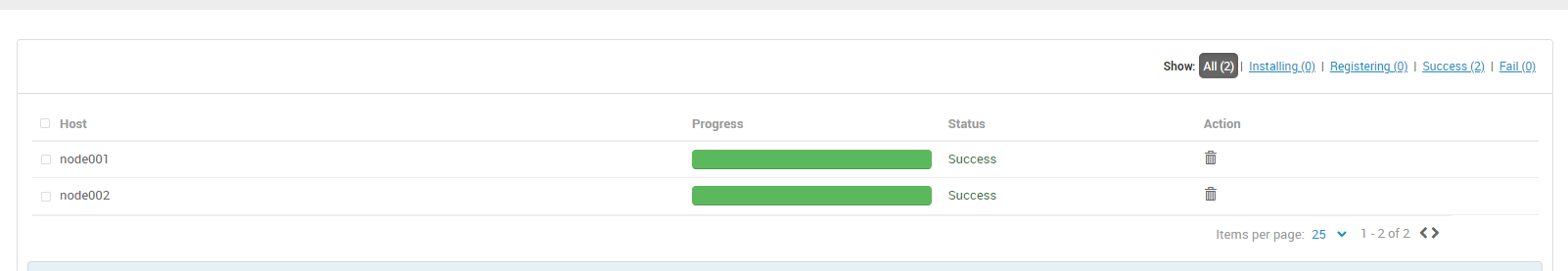

验证通过

image-20211123150337730

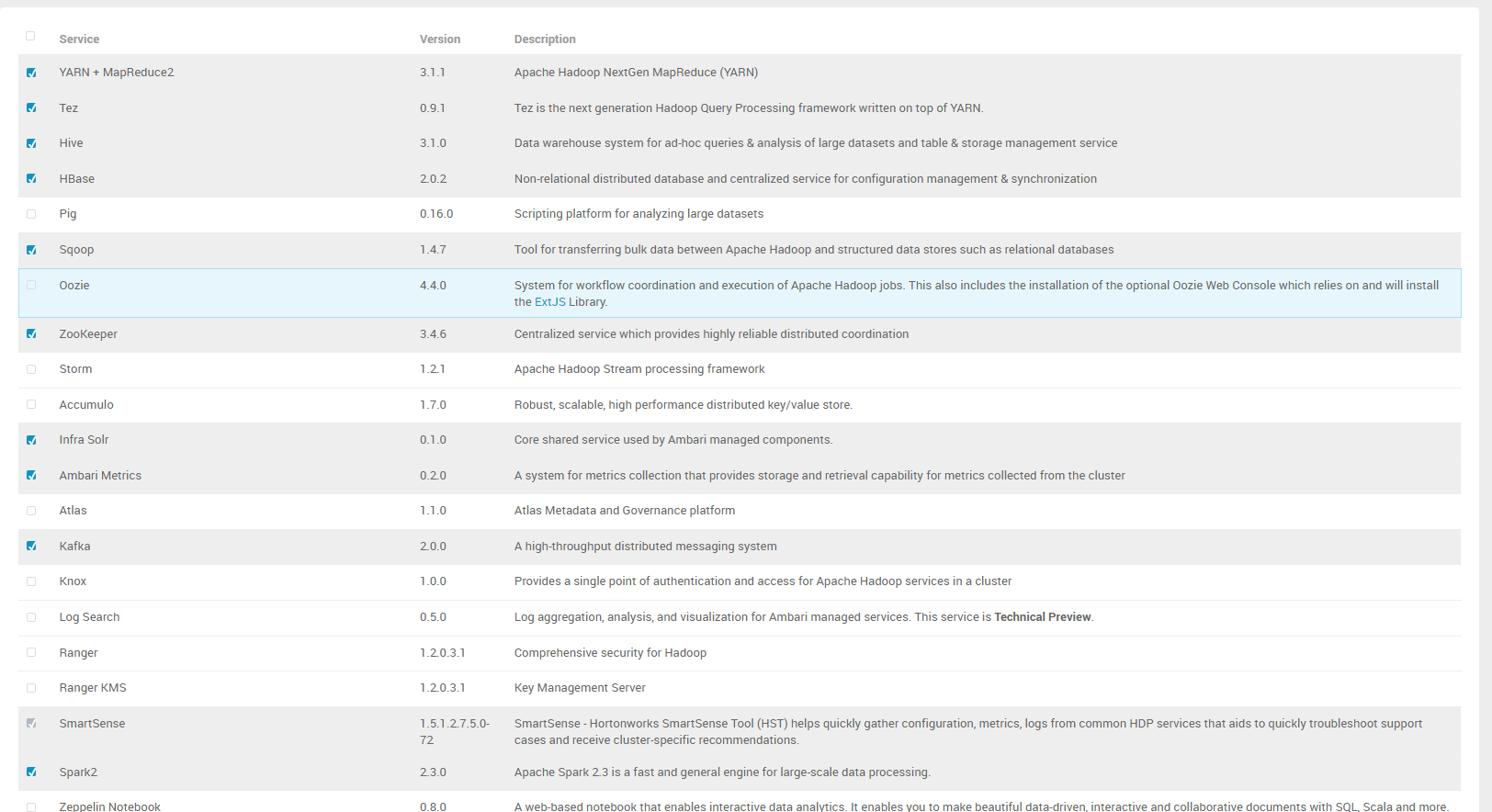

3.4 勾选需要安装的服务

由于资源有限,这里并没有选择所有服务

image-20211123151238695

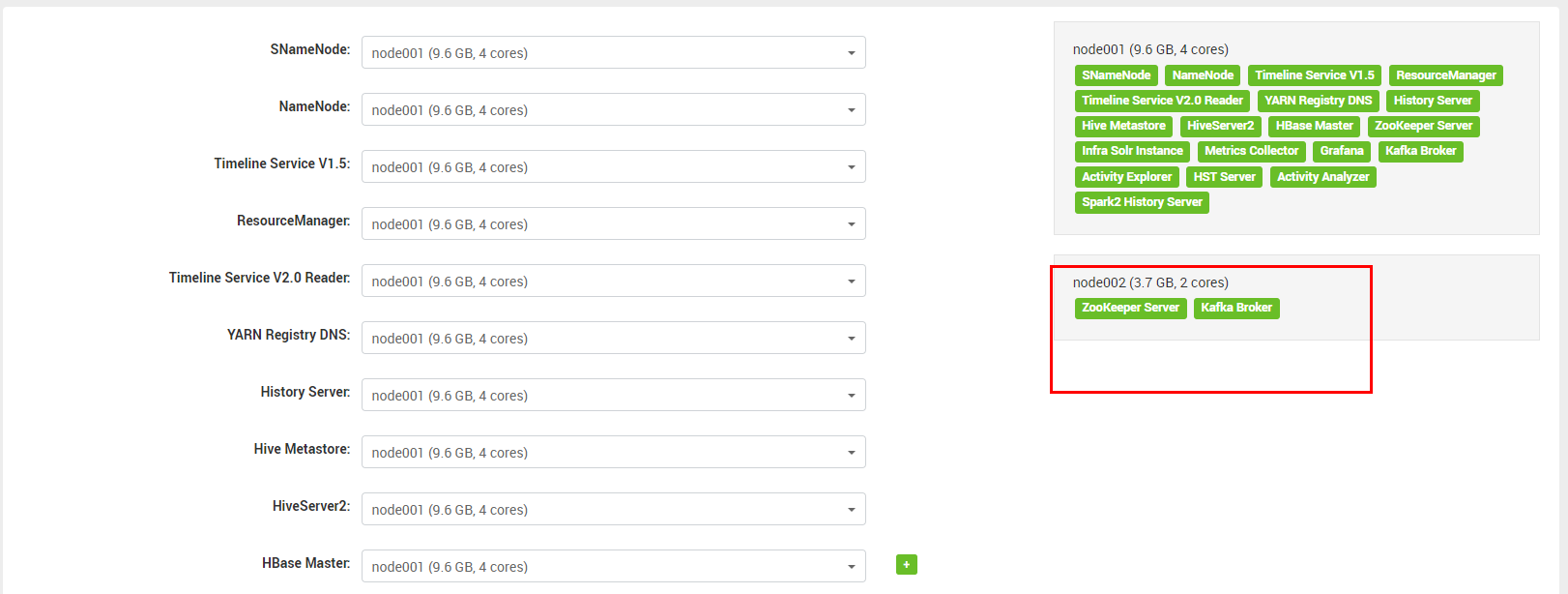

3.5 分配服务 master

image-20211123151312856

3.6 分配服务 slaves

image-20211123151134172

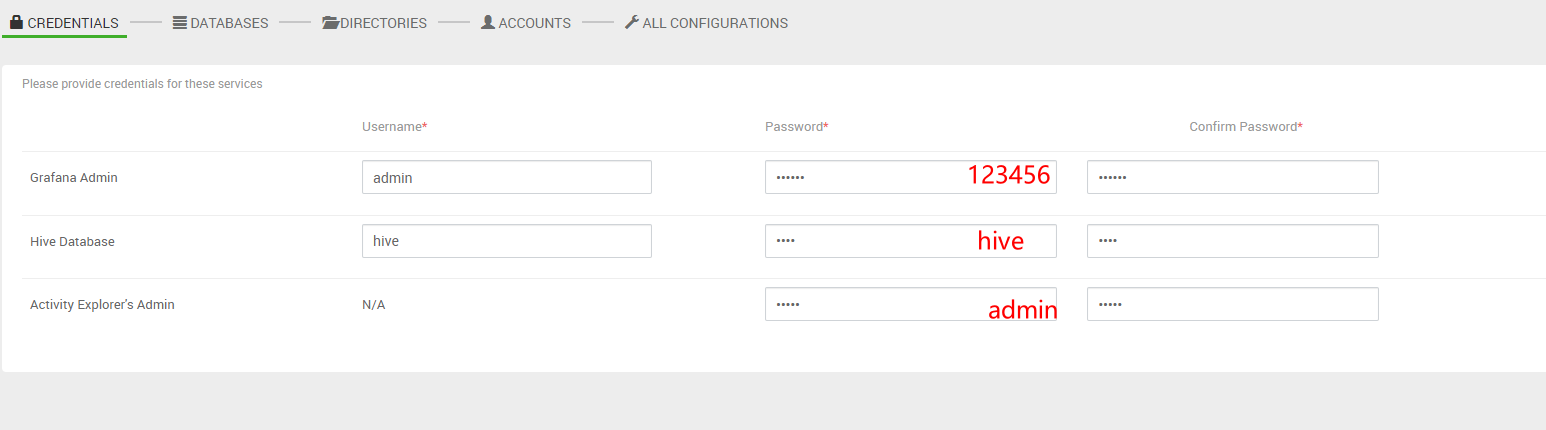

设置相关服务的密码

Grafana Admin: 123456

Hive Database: hive

Activity Explorer’s Admin: admin

image-20211123151427030

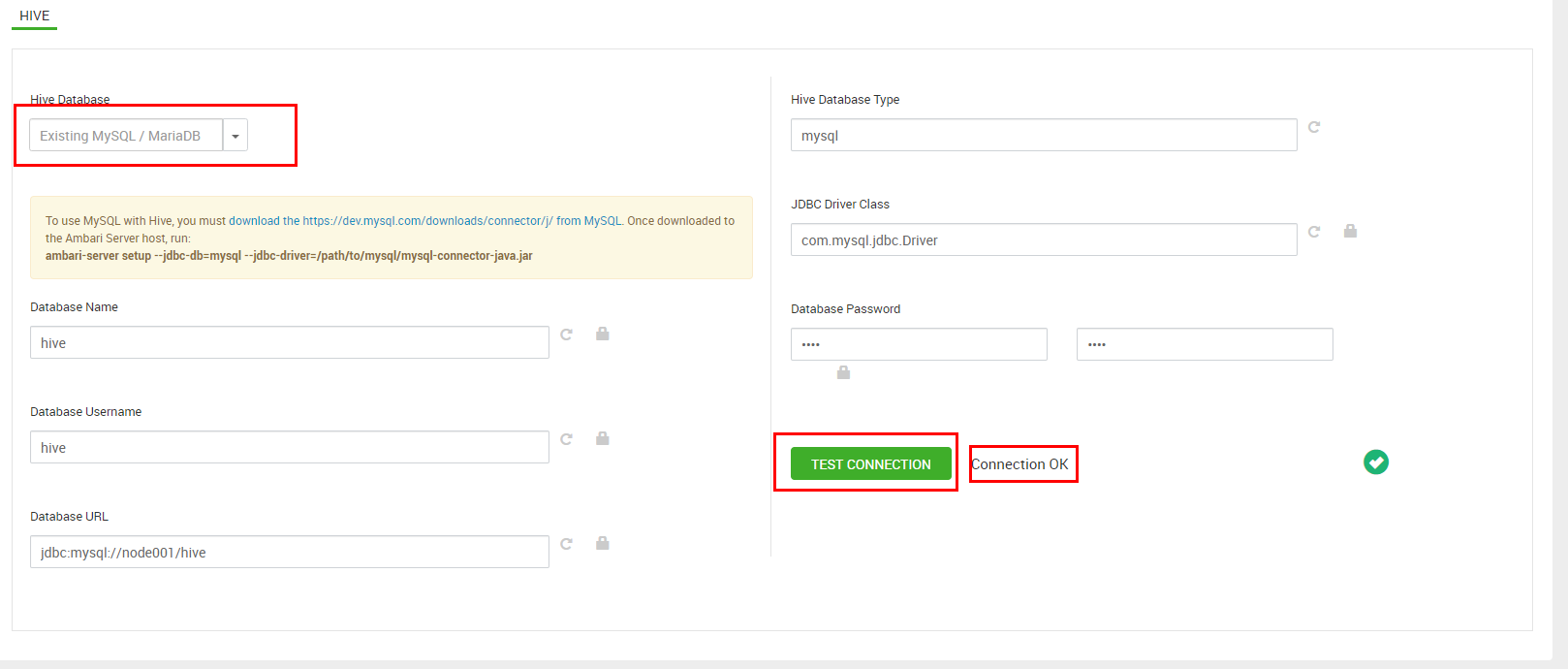

3.7 连接数据库

image-20211123151525068

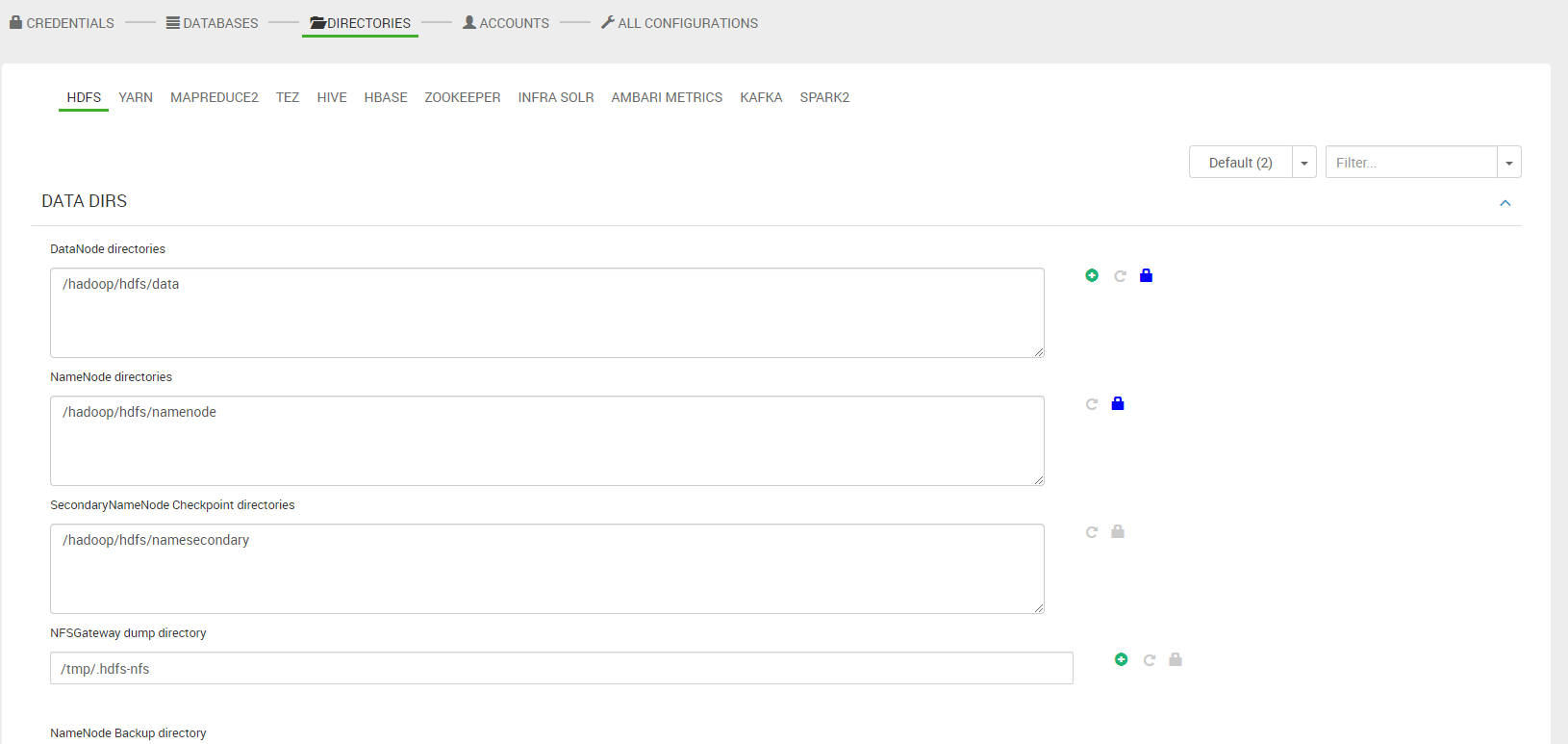

3.8 编辑配置,默认即可

image-20211123151547943

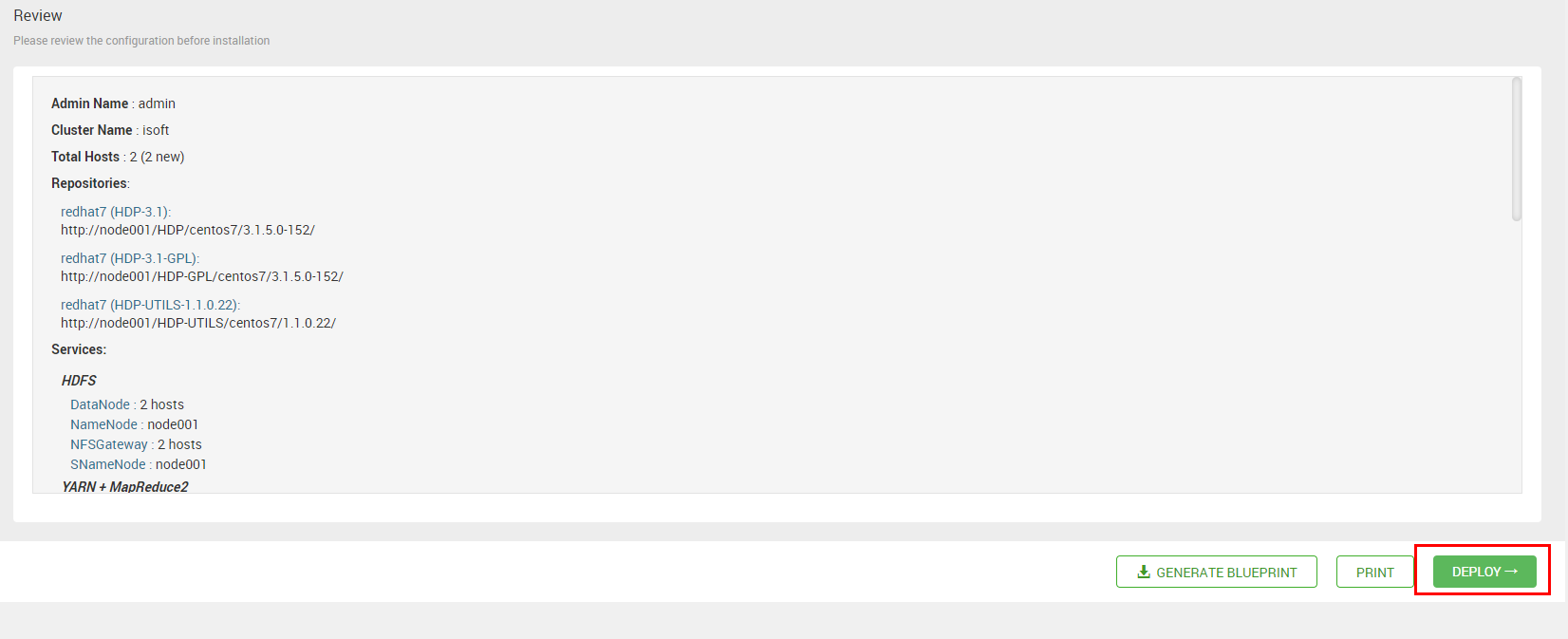

3.9 开始部署

image-20211123151705941

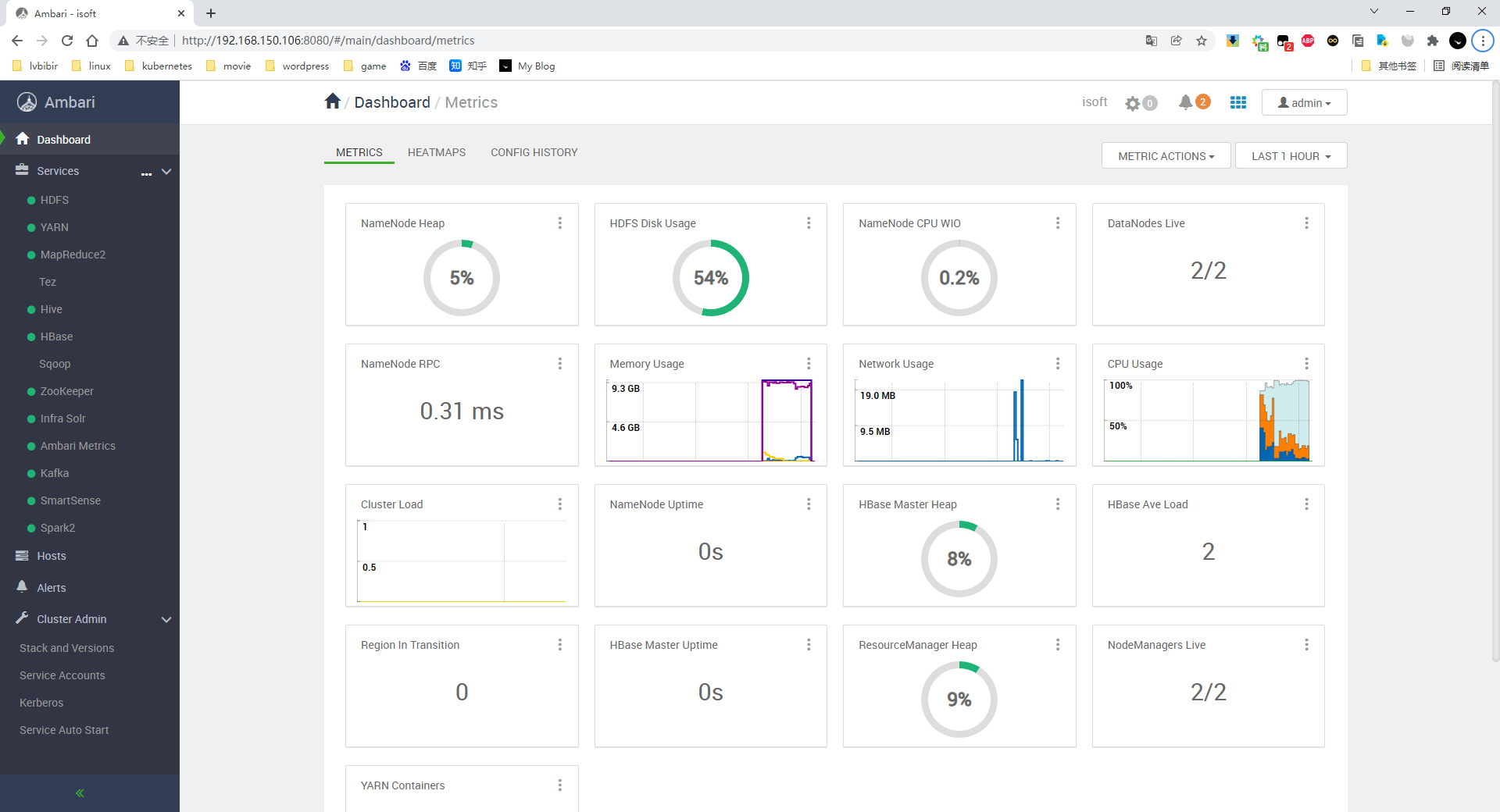

3.10 安装成功

右上角两个警告是磁盘使用率警告,虚机分配的磁盘较小

image-20211123163439475

4 其他

4.1 添加其他系统支持

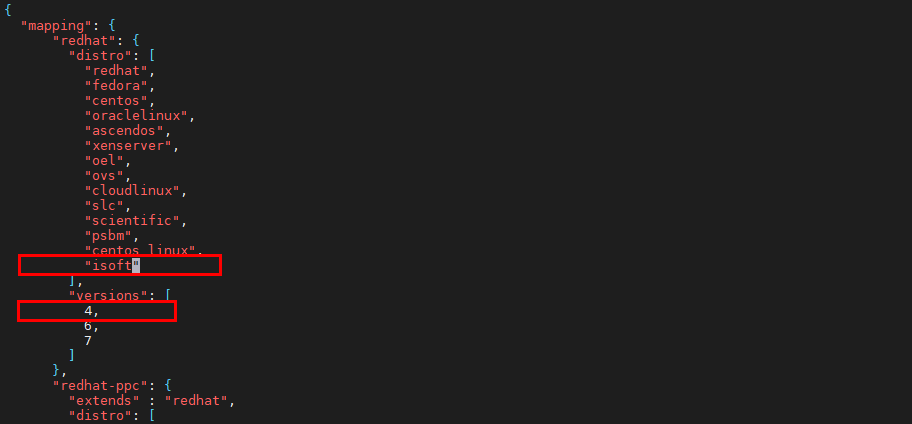

HDP 默认不支持安装到 isoft-serverosv4.2,需手动添加支持

vim /usr/lib/ambari-server/lib/ambari_commons/resources/os_family.json

添加如下两行,注意缩进和逗号

image-20211123145525458

4.2 YARN Registry DNS 服务启动失败

lsof -i:53
kill -9

4.3 设置初始检测的系统版本

vim /etc/ambari-server/conf/ambari.properties
server.os_family=redhat7
server.os_type=redhat7
